Planet profile

StopWatch

M5Stack · ESP32-S3 · 16 MB flash

View galaxy Find missions Product page
StopWatch

Features

2 x Programmable Buttons, 1 x Power Button
Built-in Vibration Motor
6-axis IMU BMI270
ES8311 Audio Codec
MEMS MIC
AW8737A Speaker Amplifier + 1W @ 8Ω Speaker
RTC Clock Chip RX8130CE
Rear Magnetic Attachment Design
M5PM1 Multi-level Power Management System
Built-in 450mAh Battery

Specifications

ChipESP32-S3
FLASH16MB
PSRAM8MB
Display1.75" AMOLED
Resolution466x466

Developer resources

Board configuration

Board ID

Use this value as `board_slug` in ESPVerse API requests.

m5-stopwatch

PlatformIO configuration

Add this environment to your `platformio.ini` file.

[env:m5-stopwatch]
platform = espressif32@6.9.0
framework = arduino
board = lolin_s3_pro
lib_deps =
	m5stack/M5Unified@0.2.14
    M5PM1 = https://github.com/m5stack/M5PM1
    M5IOE1 = https://github.com/m5stack/M5IOE1

Sample images

StopWatch

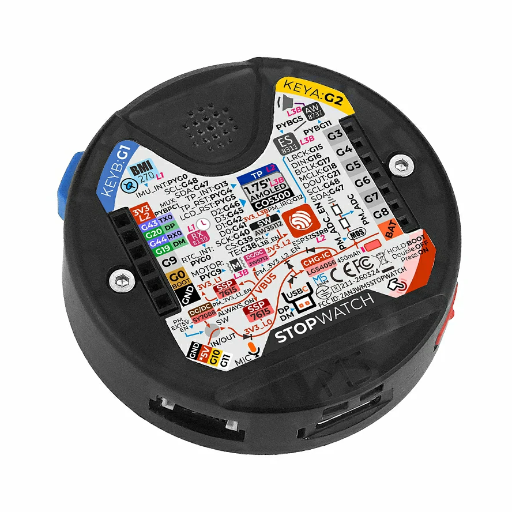

StopWatch sample image StopWatch sample image StopWatch sample image
