ESPVerse

Planet profile

Paper S3

M5Stack · ESP32-S3 · 16 MB flash

View galaxy Product page
Paper S3

Features

ESP32-S3R8 SoC
Built-in gyroscope, buzzer, physical buttons
8MB PSRAM, 16MB external flash
4.7" touch e-ink screen 960×540 resolution
Back magnetic attachment
1800mAh lithium battery
RTC chip sleep wake-up

Specifications

ChipESP32-S3
Flash16MB
PSRAM8MB
Display4.7"
Resolution960x540

Developer resources

Board configuration

Board ID

Use this value as `board_slug` in ESPVerse API requests.

m5-paper-s3

PlatformIO configuration

Add this environment to your `platformio.ini` file.

[env:m5-paper-s3]
platform = espressif32@6.9.0
board = lolin_s3_pro
framework = arduino
Launch procedure

Connect the device to a computer via USB cable, long press the power button on the M5PaperS3, when the back status light flashes red, it indicates the device has entered download mode.

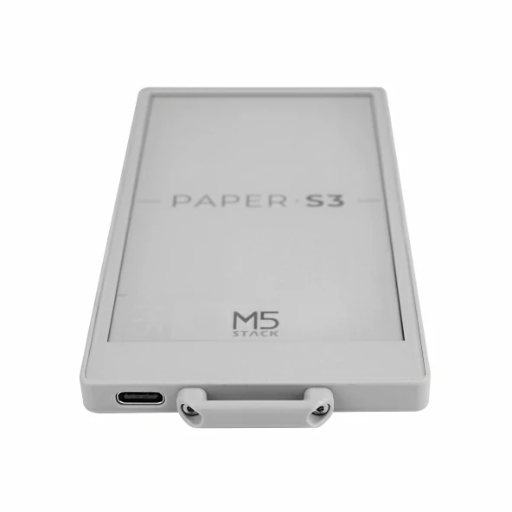

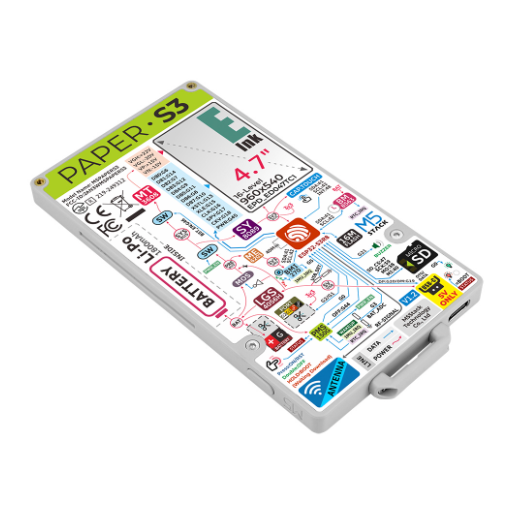

Sample images

Paper S3

Paper S3 sample image Paper S3 sample image

Available missions

Flashable on ESPVerse
